Reinforcement Survey London
Concrete Reinforcement Scanning, Rebar Mapping & Structural Surveys Across London
Magnitude Geo provides professional reinforcement surveys across London, the Home Counties and South East England. Using specialist Ground Penetrating Radar (GPR) and Ferroscan technology, we investigate reinforcing steel within existing concrete structures to provide valuable information for structural engineers, contractors, developers and construction professionals.
Our reinforcement surveys can help identify reinforcement position, direction, approximate spacing and concrete cover within concrete slabs, walls, beams, columns, soffits and accessible foundations. Where survey conditions allow, indicative information regarding reinforcement diameter may also be obtained.
Whether you require reinforcement information for a structural investigation, refurbishment project, proposed wall removal, new opening, drilling, resin anchors or other structural alterations, Magnitude Geo provides practical non-destructive survey information to support informed engineering and construction decisions.
Why Choose Magnitude Geo for Reinforcement Surveys?
Magnitude Geo provides specialist reinforcement scanning and mapping services for structural engineering, construction and refurbishment projects throughout London and the Home Counties. Our surveys are planned around the information required for each project, allowing us to provide targeted and practical reinforcement information without unnecessary investigation.
Using GPR, Ferroscan or a combination of appropriate non-destructive technologies, our experienced surveyors can investigate reinforcement within a wide range of reinforced concrete structural elements.
- Professional reinforcement scanning and mapping surveys
- Rebar position and reinforcement arrangement assessment
- Approximate reinforcement spacing information
- Concrete cover assessment where survey conditions permit
- Indicative reinforcement diameter information where reasonably obtainable
- Surveys of concrete slabs, walls, beams, columns and foundations
- Ground Penetrating Radar and Ferroscan technology
- Representative reinforcement surveys for structural investigations
- On-site reinforcement mark-ups where required
- Detailed survey reports and annotated findings
- CAD drawings and digital deliverables available where required
- Fast response across London and the Home Counties
From small targeted reinforcement checks to larger structural investigations, Magnitude Geo provides clear, professional and project-specific survey information tailored to the requirements of structural engineers and construction teams.
Request a Free Quote
Planning a structural investigation, refurbishment or alteration project? Magnitude Geo provides professional reinforcement surveys throughout London, the Home Counties and South East England.
Our surveys can investigate reinforcement within concrete slabs, walls, beams, columns, soffits and exposed foundations, providing information regarding reinforcement position, direction, approximate spacing and concrete cover within the surveyed areas.
Whether you require representative reinforcement information for a structural engineer, scanning before a wall removal, investigation of an existing foundation or reinforcement mapping before proposed alterations, we can develop a survey methodology appropriate to your project.
Send us your structural drawings, photographs and marked-up survey locations where available. Our team can review the information and provide a free, no-obligation quotation.
Areas We Cover
Magnitude Geo provides professional reinforcement surveys, rebar mapping, Ground Penetrating Radar and Ferroscan services throughout Greater London, the Home Counties and South East England.
Our experienced surveyors support structural engineers, contractors, developers, builders and property professionals requiring reinforcement information before refurbishment, structural alterations, drilling, cutting and other construction works.
We regularly work across Central London, North London, South London, East London and West London, as well as Surrey, Kent, Essex, Hertfordshire, Buckinghamshire and Berkshire.
If your project is located outside these areas, please contact Magnitude Geo to discuss your requirements.
Professional Reinforcement Survey Deliverables
Magnitude Geo provides clear and professional reinforcement survey deliverables to support structural investigations, refurbishment projects and construction works throughout London.
The level of documentation can be tailored to the scope of the project. A small targeted reinforcement scan may require on-site marking and annotated photographs, while a larger structural investigation may require multiple survey areas, detailed reporting and CAD drawing production.
- Detailed reinforcement survey reports with clearly documented findings
- Annotated photographs showing surveyed areas and reinforcement information
- Recorded reinforcement direction and approximate spacing
- Concrete cover observations where conditions permit
- Indicative reinforcement diameter information where reasonably obtainable
- Representative reinforcement mapping
- Survey location plans
- On-site reinforcement mark-ups where required
- CAD drawings and PDF drawing packages
- Clearly documented survey methodology and limitations
- Professional information suitable for structural engineers and contractors
Our aim is to provide practical information that can be incorporated into engineering assessments, construction planning and proposed structural alterations.
What is a Reinforcement Survey?
A reinforcement survey is a non-destructive investigation used to obtain information regarding reinforcing steel contained within an existing concrete structure. Reinforced concrete buildings frequently undergo refurbishment, structural alterations or changes of use many years after their original construction, and detailed reinforcement drawings may not always be available.
Reinforcement surveys can help structural engineers understand the existing construction by investigating reinforcement within selected concrete elements. Depending on the project requirements and survey conditions, information may include reinforcement position, direction, approximate spacing and concrete cover.
Where reasonably obtainable, indicative reinforcement diameter information may also be provided. However, reinforcement congestion, concrete cover, adjacent bars and other site conditions can influence non-destructive diameter estimation, so exact bar size cannot always be confirmed using scanning alone.
Magnitude Geo undertakes reinforcement surveys of reinforced concrete slabs, walls, beams, columns, soffits and accessible foundations throughout London and the Home Counties.
Why are Reinforcement Surveys Important?
Accurate reinforcement information can be essential when structural alterations, refurbishment works or intrusive construction activities are proposed within an existing reinforced concrete structure.
Reinforcing steel forms an important part of the structural system, and modifications carried out without understanding the existing reinforcement arrangement can create unnecessary engineering risk. A reinforcement survey can provide additional information before work begins, allowing structural engineers and contractors to make more informed decisions.
Reinforcement surveys are frequently undertaken before wall removals, new structural openings, extensions, strengthening works, installation of new structural connections, drilling and other alterations to existing concrete elements.
Where original structural information is unavailable or incomplete, non-destructive reinforcement scanning can also provide valuable information regarding the existing construction while avoiding unnecessary damage to the structure.
Reinforcement Size, Spacing & Concrete Cover Surveys
Structural engineers frequently require information regarding reinforcement spacing, concrete cover and the arrangement of reinforcing steel within existing concrete structures.
By systematically scanning selected areas of concrete, repeating reinforcement patterns can often be identified, allowing reinforcement direction and approximate bar spacing to be assessed. Concrete cover information may also be obtained where the reinforcement configuration and survey conditions permit.
Estimating reinforcement diameter using non-destructive methods can be more dependent on site conditions. Concrete cover, adjacent reinforcement, bar congestion and reinforcement configuration can influence the results. Where indicative diameter information is provided, it should therefore be considered alongside the stated survey methodology and limitations.
Our surveys can be tailored around the information required by the structural engineer, focusing on selected slabs, walls, beams, columns or foundations rather than carrying out unnecessary investigation across the entire structure.
GPR Reinforcement Surveys
Ground Penetrating Radar (GPR) is a non-destructive survey technology that can be used to investigate reinforcement and other embedded features within concrete structures.
GPR surveys can assist with identifying reinforcement patterns within slabs, walls, beams and other concrete elements while also providing information regarding additional embedded features such as post-tension cables, conduits and services where conditions permit.
Ground Penetrating Radar is particularly useful where a wider concrete investigation is required beyond reinforcement alone. Survey findings can be interpreted on site and processed further where detailed reporting or reinforcement mapping is required.
For more information about this technology, visit our GPR Survey London page.

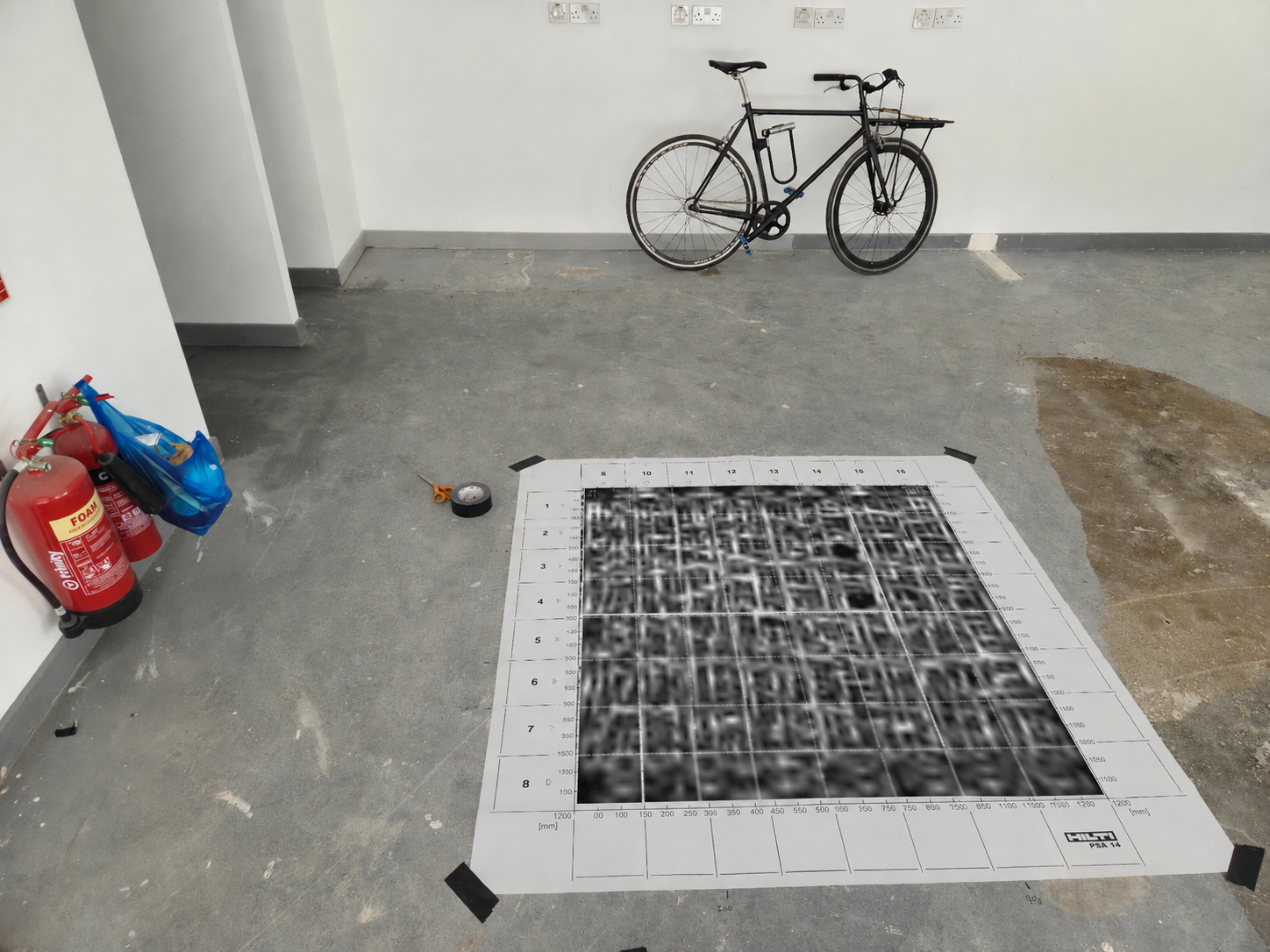

Ferroscan Reinforcement Surveys
Ferroscan technology is specifically designed for investigating ferrous reinforcement within concrete and can be particularly useful where reinforcement position, spacing and concrete cover information is required.
The equipment can be moved systematically across accessible concrete surfaces to identify reinforcement patterns within selected survey areas. This information can support structural engineers assessing existing concrete elements before refurbishment or structural modification.
Depending on the project requirements, Ferroscan may be used independently or alongside Ground Penetrating Radar to provide additional reinforcement information.
Visit our Ferroscan Surveys London page for more information about our dedicated Ferroscan services.
Representative Reinforcement Surveys
Large reinforced concrete structures can contain extensive reinforcement across slabs, walls, beams and columns. Undertaking a complete bar-by-bar survey of an entire structure can therefore become time-consuming and costly.
Where a complete reinforcement map is not required, Magnitude Geo can undertake representative reinforcement surveys within strategically selected areas.
Survey locations can be agreed with the structural engineer and focused around critical structural elements, proposed openings, highly loaded locations or areas affected by planned alterations.
This approach can provide meaningful information regarding typical reinforcement direction, approximate spacing, concrete cover and reinforcement arrangement while keeping the investigation proportionate to the project requirements.
Reinforcement Mapping & Survey Drawings
Magnitude Geo provides reinforcement mapping and survey documentation for projects where the identified reinforcement needs to be formally recorded for engineering or construction purposes.
Depending on the project requirements, reinforcement findings can be supplied through annotated photographs, marked-up site plans, technical reports and CAD drawings showing the investigated areas and observed reinforcement patterns.
Reinforcement mapping can support structural engineers assessing existing structures before wall removals, new openings, refurbishment works, strengthening schemes and other alterations to reinforced concrete construction.
For projects focused primarily on locating reinforcing steel before drilling or construction works, visit our Rebar Detection London page.
Reinforcement Surveys Before Drilling, Coring & Structural Alterations
Understanding the reinforcement arrangement before drilling, coring, cutting or modifying reinforced concrete can help reduce the risk of damaging important structural reinforcement.
Magnitude Geo undertakes targeted reinforcement surveys around proposed working locations before drilling, resin anchor installation, new structural connections, wall removals, new openings and other intrusive works.
Detected reinforcement can be marked directly onto accessible concrete surfaces where required, allowing contractors and engineers to consider the reinforcement arrangement before construction activities commence.
Where structural alterations are proposed, reinforcement survey information can also support the structural engineer's assessment of the existing construction and proposed design.
Reinforcement Surveys for Structural Engineers
Magnitude Geo regularly supports structural engineers requiring information regarding existing reinforced concrete structures before refurbishment, alteration or redevelopment works commence.
Surveys can assist where original structural drawings are unavailable, incomplete or where additional verification of the existing construction is required.
Typical applications include wall removals, new structural openings, extensions, strengthening schemes, refurbishment projects, changes of use and investigations associated with proposed increases in structural loading.
Survey locations can be selected around the structural elements most relevant to the engineering assessment, with findings supplied through annotated photographs, reports and CAD drawings where required.
Who Uses Our Reinforcement Survey Services?
Magnitude Geo provides professional reinforcement surveys for a wide range of clients throughout London, the Home Counties and South East England.
Structural Engineers
Structural engineers use reinforcement surveys to obtain information regarding existing reinforced concrete construction before design, refurbishment, strengthening and structural alteration works.
Contractors
Contractors require reinforcement information before drilling, cutting, forming openings, installing structural connections and undertaking other intrusive construction activities.
Developers
Developers use reinforcement investigations when assessing existing buildings prior to refurbishment, extension, redevelopment or change of use.
Builders
Builders use reinforcement scanning before wall removals, new openings, extensions and alterations to existing reinforced concrete structures.
Project Managers
Project managers use reinforcement survey findings to coordinate structural investigations and provide project teams with practical information regarding existing construction.
Property Owners
Property owners undertaking major refurbishment or structural alteration projects may require reinforcement surveys where original structural information is unavailable.
Concrete Scanning & Reinforcement Investigation Services
Magnitude Geo provides a complete range of non-destructive concrete investigation services across London, the Home Counties and South East England.
Alongside reinforcement surveys, we provide Ground Penetrating Radar, Ferroscan surveys, rebar detection and professional concrete scanning for structural engineering and construction projects.
Explore our Concrete Scanning London, GPR Survey London, Ferroscan Surveys London and Rebar Detection London services.
Frequently Asked Questions
What is a reinforcement survey?
A reinforcement survey is a non-destructive investigation used to obtain information regarding reinforcing steel within an existing concrete structure, including reinforcement position, direction, approximate spacing and concrete cover where conditions permit.
Can you locate reinforcement in concrete?
Yes. Magnitude Geo uses specialist reinforcement scanning technologies including Ferroscan and Ground Penetrating Radar where appropriate to investigate reinforcing steel within concrete structures.
Can you determine reinforcement spacing?
Approximate reinforcement spacing can often be assessed by identifying repeating reinforcement positions across the scanned area. Results depend on reinforcement configuration, concrete cover and site conditions.
Can you measure concrete cover?
Concrete cover information can be obtained in suitable conditions using appropriate reinforcement scanning equipment. The quality of the results depends on the reinforcement arrangement and survey conditions.
Can a reinforcement survey determine bar diameter?
Indicative reinforcement diameter information may sometimes be obtainable, but results can be influenced by concrete cover, reinforcement congestion and adjacent bars. Exact reinforcement diameter cannot be guaranteed in every situation using non-destructive scanning alone.
What concrete elements can you survey?
Magnitude Geo can investigate reinforcement within accessible reinforced concrete slabs, walls, beams, lintels, columns, soffits and foundations.
Do structural engineers use reinforcement surveys?
Yes. Reinforcement surveys are frequently used where structural engineers require information regarding existing reinforced concrete construction before refurbishment, structural alterations, extensions or strengthening works.
Do you provide reinforcement mapping?
Yes. Reinforcement findings can be recorded through annotated photographs, survey reports, marked-up plans and CAD drawings depending on the project requirements.
Should I use Ferroscan or GPR?
The most appropriate survey technology depends on the structure and information required. Ferroscan is particularly suited to ferrous reinforcement investigation, while GPR can respond to a wider range of embedded features. Magnitude Geo can recommend an appropriate methodology after reviewing the project requirements.
How much does a reinforcement survey cost?
The cost depends on the number and size of survey areas, access conditions, project location, survey methodology and the level of reporting required. Contact Magnitude Geo for a free, project-specific quotation.
Do you provide reinforcement surveys throughout London?
Yes. Magnitude Geo provides reinforcement surveys throughout Greater London, including Central, North, South, East and West London, as well as Surrey, Kent, Essex, Hertfordshire, Buckinghamshire and Berkshire.
Why choose Magnitude Geo for reinforcement surveys?
Magnitude Geo combines specialist reinforcement scanning technology with practical survey experience to provide targeted reinforcement investigations, representative surveys, on-site mark-ups, reports and CAD deliverables for structural engineers and construction professionals.
Need a Reinforcement Survey in London?
If you require reinforcement information for an existing concrete slab, wall, beam, column or foundation, Magnitude Geo can develop a survey methodology tailored to your project and structural engineer's requirements.
We provide targeted reinforcement scans, representative structural investigations, reinforcement mapping, technical reports and CAD deliverables throughout London and the Home Counties.
Contact Magnitude Geo today with your drawings, photographs and proposed survey locations for a free, no-obligation quotation.
